Aluminium Cladding For Pipe Insulation

Quick Details:

Package: Plastic & Carton packing, In wooden or steel pallets.
Most common used alloy: 1060, 3003
Thickness: 0.4-1mm
Delivery time: 7-10 days
Payment terms: TT, LC, Westunion, Bitcoin, Trade Assurance

Introduction

There are 8 series of aluminum alloy, from 1xxx to 8xxxx. Most common used alloy for insulation is 1100, 1060, 3003, 3105 and 5005. 3003 is better in anti-rust performance than 1060.

Aluminum jacketing is available in Smooth, Stucco Embossed, Corrugated (cross-crimped) finishes, with or without moisture barrier (craft paper and poly surlyn)

Standard Sizes

Thickness(inch)	Thickness(mm)	Width(mm)	Length(m)	Suggested Application
0.016	0.4	914, 1000, 1219	30, 60, 90, coil or sheet	OD below 36”(914mm) insulated lines
0.020	0.5	914, 1000, 1219	30, 60, 90, coil or sheet	OD below 36”(914mm) insulated lines
0.024	0.6	914, 1000, 1219	30, 60, 90, coil or sheet	OD 36”-8′ (914mm-2.43m) insulated lines&equipment
0.032	0.8	914, 1000, 1219	30, 60, 90, coil or sheet	special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications
0.040	1	914, 1000, 1219	30, 60, 90, coil or sheet	special applications where heavy mechanical is required
0.050	1.2	914, 1000, 1219	30, 60, 90, coil or sheet	flat ducts or precipitators. Also recommended for areas subject to high wind conditions

Remarks: Other sizes available upon request.

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Zn	Mg	Ti	Cr	Other Elements		AL
									Each	Total
1060	0.25	0.35	0.05	0.03	0.05	0.03	0.03	–	0.03		99.6min
1100	Si+Fe=0.95		0.05-0.20	0.05	0.10	–	–	–	0.05	0.15	99.0min
3003	0.6	0.7	0.05-0.20	1.0-1.50	0.10	–	–	–	0.05	0.15	reminder
3105	0.6	0.7	0.30	0.30-0.80	0.40	0.20-0.80	0.10	0.20	0.05	0.15	reminder
5005	0.3	0.7	0.20	0.20	0.25	0.50-1.10	–	–	0.05	0.15	reminder

Features

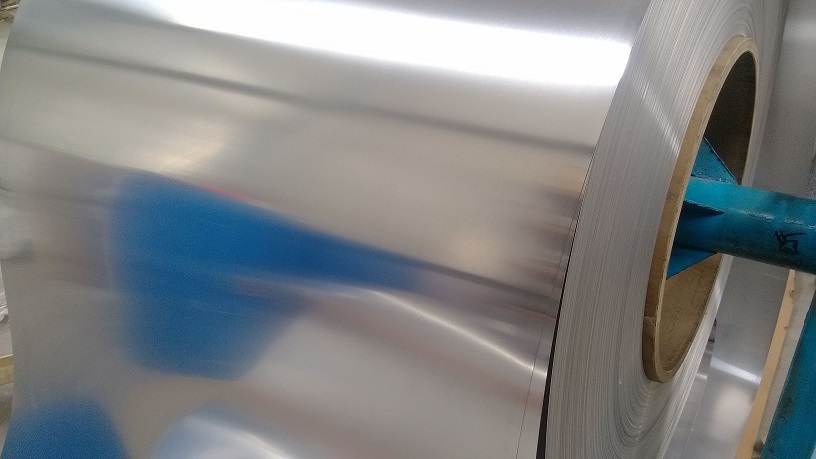

EcoIn Plain aluminum sheet has below features:

Light weight: Aluminum is about 1/3 weight of iron or steel, making it easier to handle and less expensive to ship
Strong: the tensile strength can be 85-120Mpa, and can satisfy most of insulation jacketting needed.
Corrosion resistant: they do not rust
Easy to fabricate & assemble

Application

Ecoin aluminum sheet can be used as:

Aluminum Jacketing is recommended for HVAC, Insulated Piping, Tanks & vessels less than 8 feet in diameter.

Deep corrugated sheets are recommended for diameters greater than 8 feet.

Chemical Plants & Refineries: Distillation columns, tank farms, fractionation units, cokers and ethylene production units.

Paper Mills: Chemical storage tanks, breechings and ducts.

Steel Mills: Pickle acid tanks, oxygen production units, fuel oil and tar storage tanks.

Miscellaneous: Power station, Food processing plants, LPG storage units, LNG storage units, sewage and waste water treatment plants.
